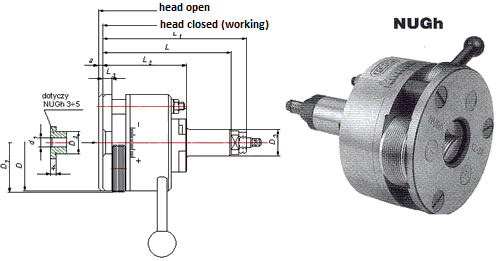

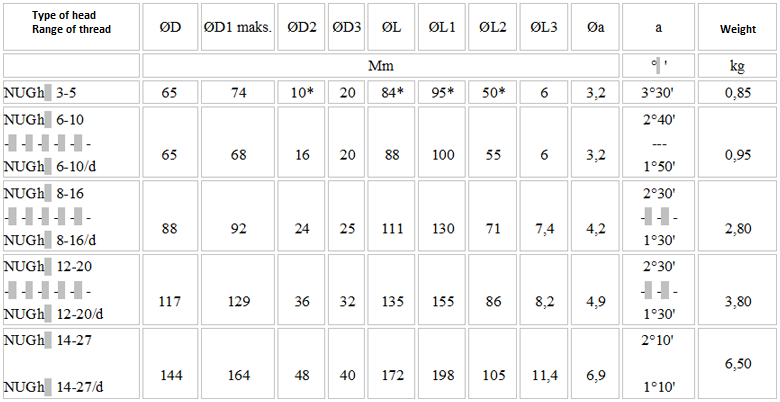

NUGh - Roll-threading cutter heads
Heads NUGh M3 M27 are used to cold rolling threads in rods and pipes made of steel and non-ferrous metals Metric International Standard and fine threads and also inch, pipe straight "G", trapezoidal threads and other profiles can be rolled using replaceable rolls of suitable profile. Heads is not equippped with its own drive. Can be mounted in the slide or lathe poppet and also in automatic lathes, threaders, turret althes etc.

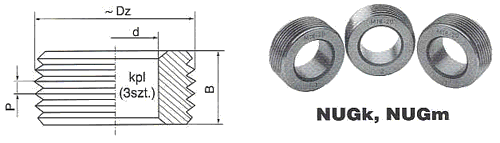

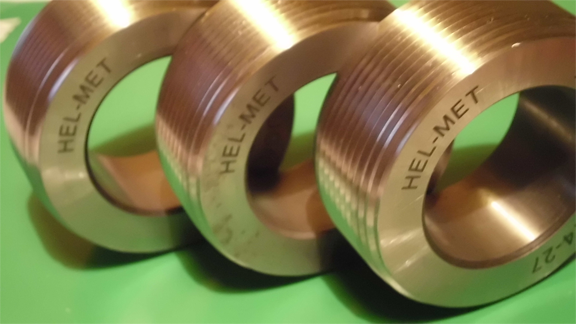

NUGk, NUGm - Rolls for NUGh heads

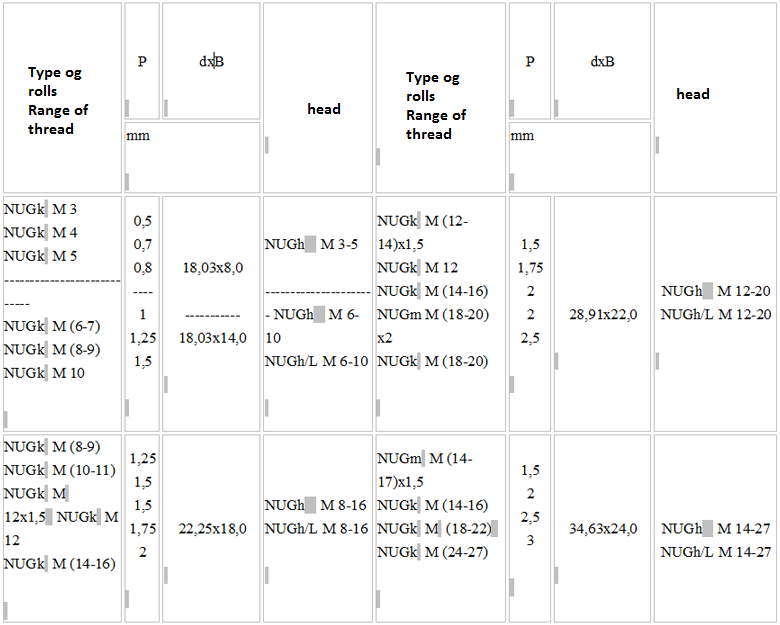

Rolls for NUGh heads:

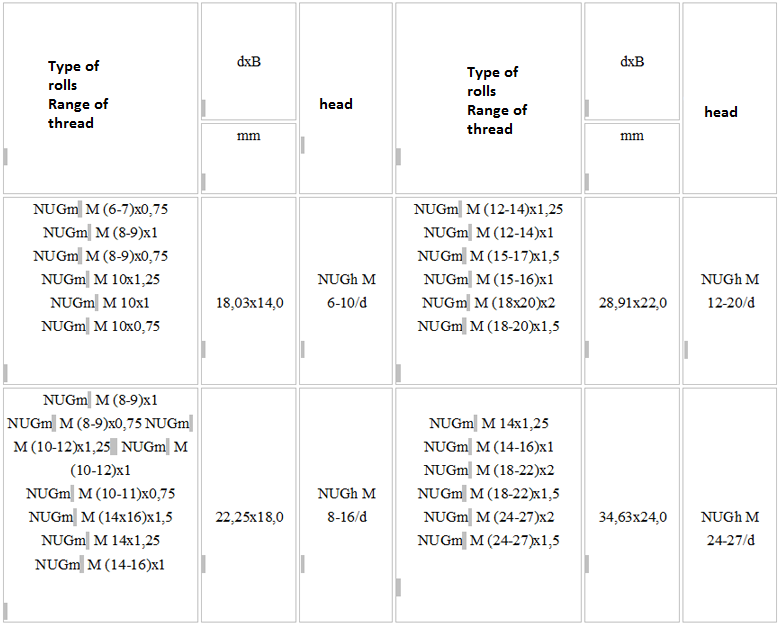

Rolls for NUGh heads:

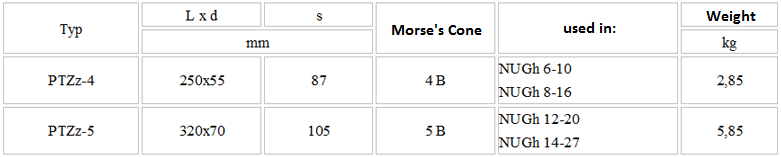

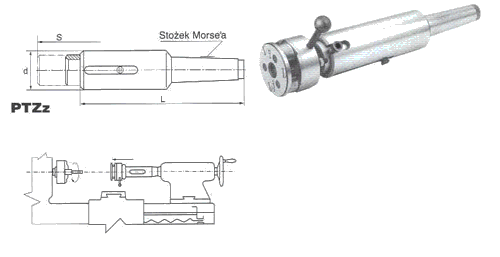

PTZz - Holding Arbors
Tool steel, tempered version
